Description:

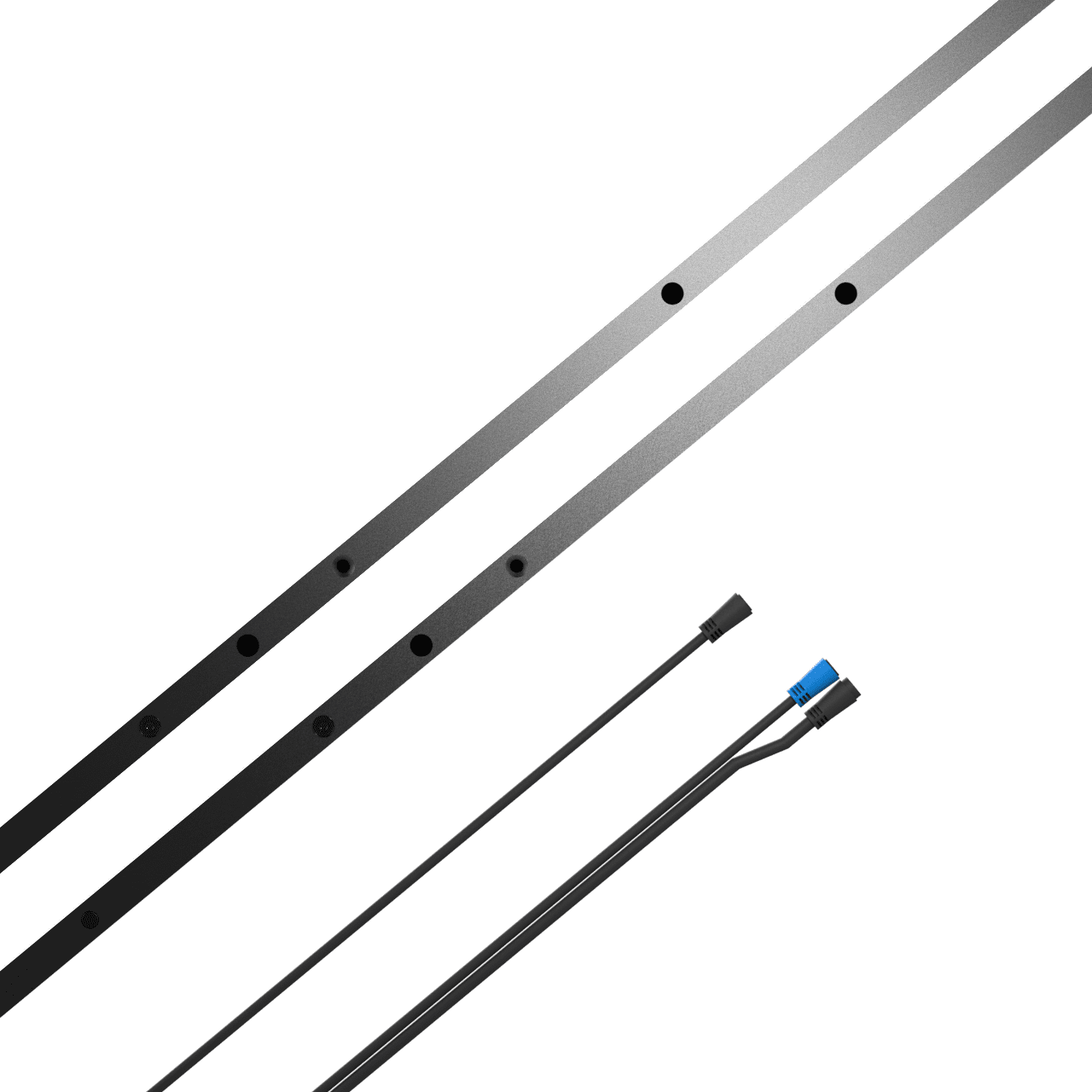

Optical safety edge with spring cable for industrial doors

Voltage: DC12-24V

Power consumption: Below 6mA

Detection distance: 0.5m-10m

Error distance: Less than 10% of detection distance

Detect object: Translucent/Non-transparent ojects

Physical dimension: 37*13mm

IP grade: IP67

Operating temperature: -20℃ - +60℃

Optional: 4 & 5 wires spring cable

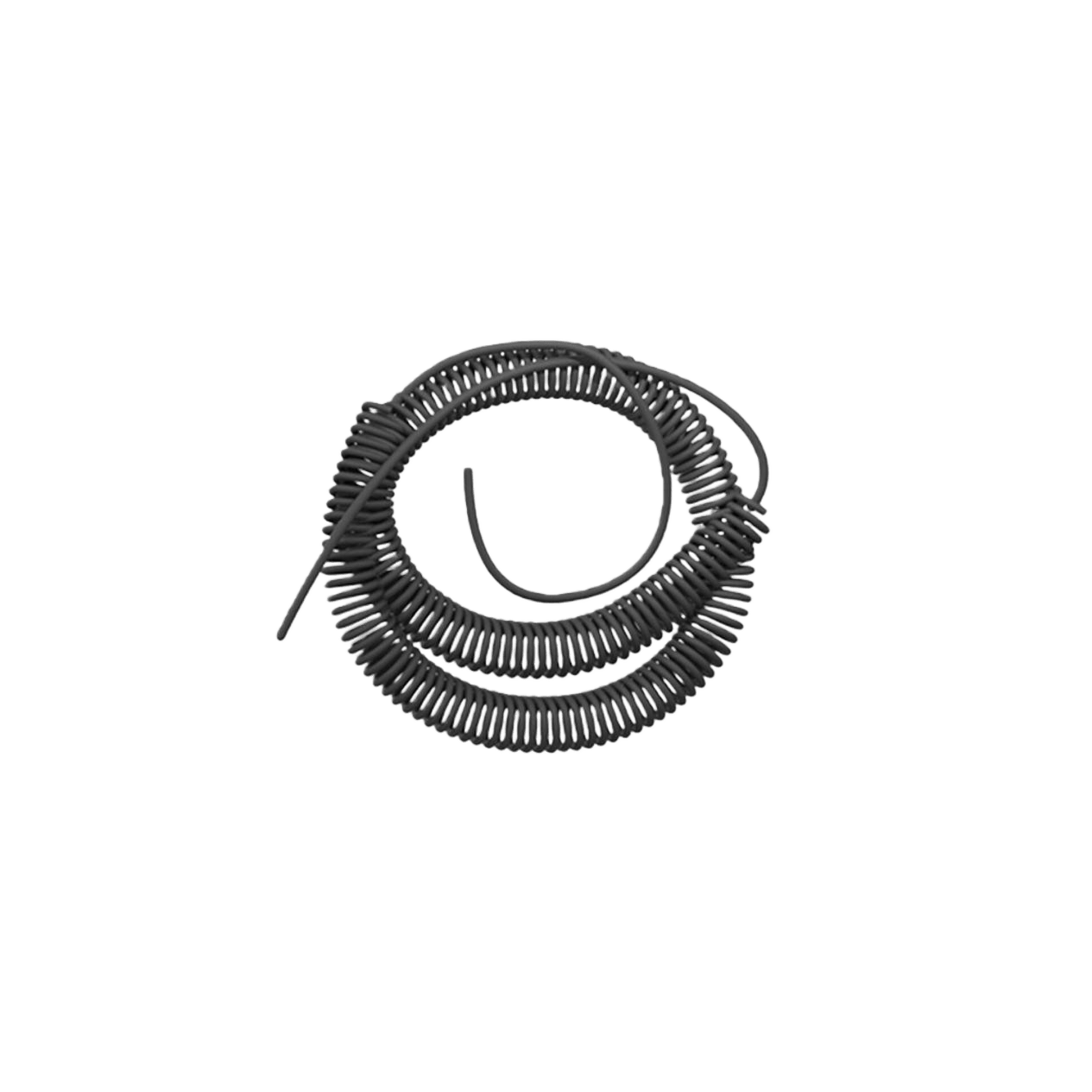

Optional: 3.5m & 5.5m spiral cable

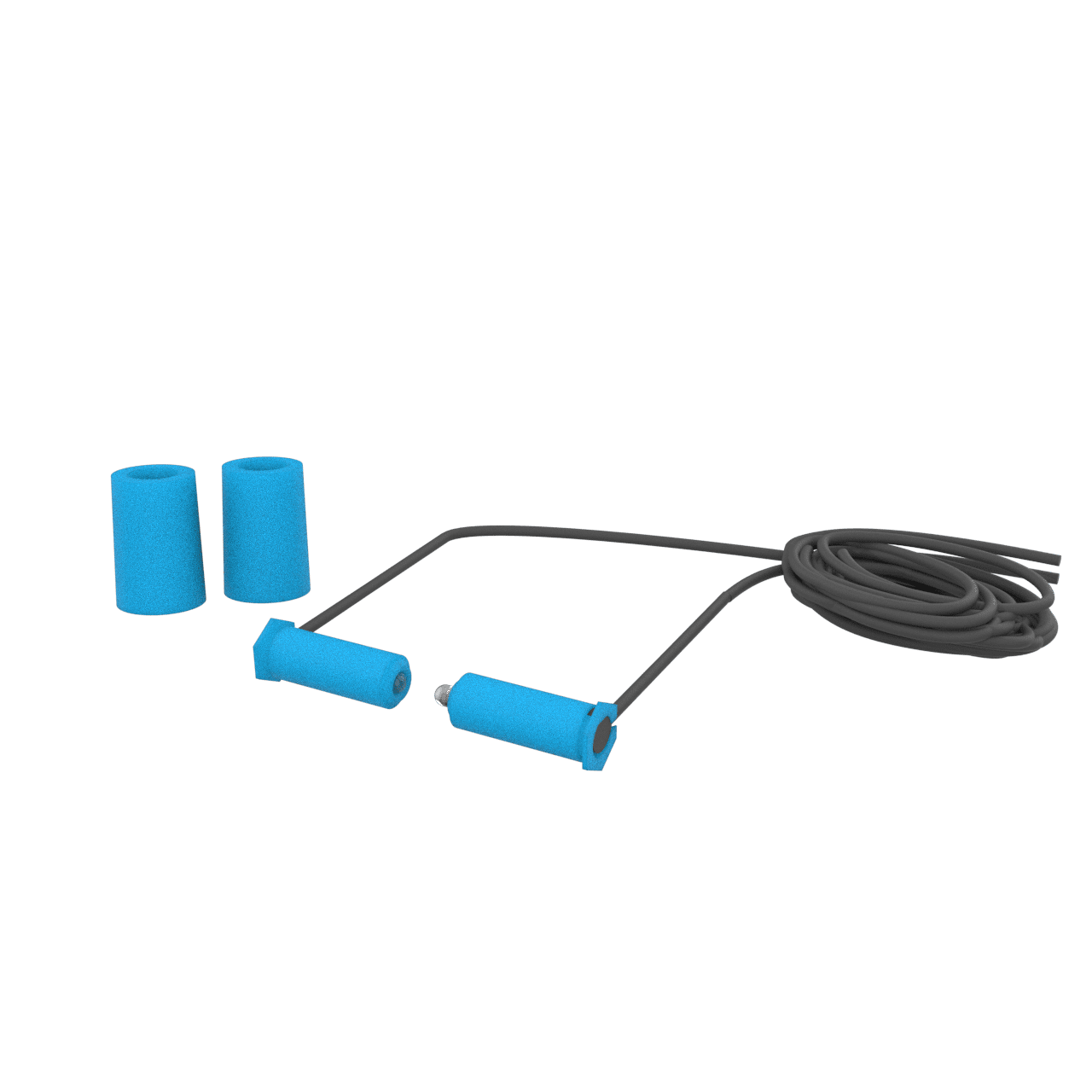

Optional: optical edge sensors set(TX 6m / 10m cable, RX 1m cable)
