GENERAL
Input voltage | 220-240V,50-60 Hz/110-127V,50-60Hz | ||
Max.pull force | 700 N | 1100 N | 1500N |
Max.door area | 7 m² | 12 m² | 18 m² |
Max.opening speed | 160mm / second | ||
Bottom base material | Metal | ||
Installation style | Horizontal / Vertical | ||
Drive mechanism | Chain / Belt | ||
Lighting | L.E.D | ||
Limit setting | Electronic | ||
Transformer | Overload protection | ||
Safety outside fuse | Including | ||
Smart Wifi technology | Optional | ||
Wireless sensor technology | Optional | ||
FEATURES
| Soft-start / stop | Opening lifting force adjustment |
| Maintenance alarm | More information display |
| Reset factory setting | Terminal devices supported |
| Obstruction force setting | Photocell on / off setting |
| Electronic travel limit setting | Transformer overload protection |
RADIO SYSTEM
| Radio technology | Rolling code |
| Frequency | 433MHz / 868MHz |
| Memory registers | 30 codes |
| Transmitter | 4 channels |
DOOR TYPE
Sectional doors | Yes | ||
Tilt doors | Yes | ||
Max door weight | 80 kg | 120 kg | 160 kg |
Max door height | 2400-5000mm | ||
Min headroom | 30 mm | ||
Related products

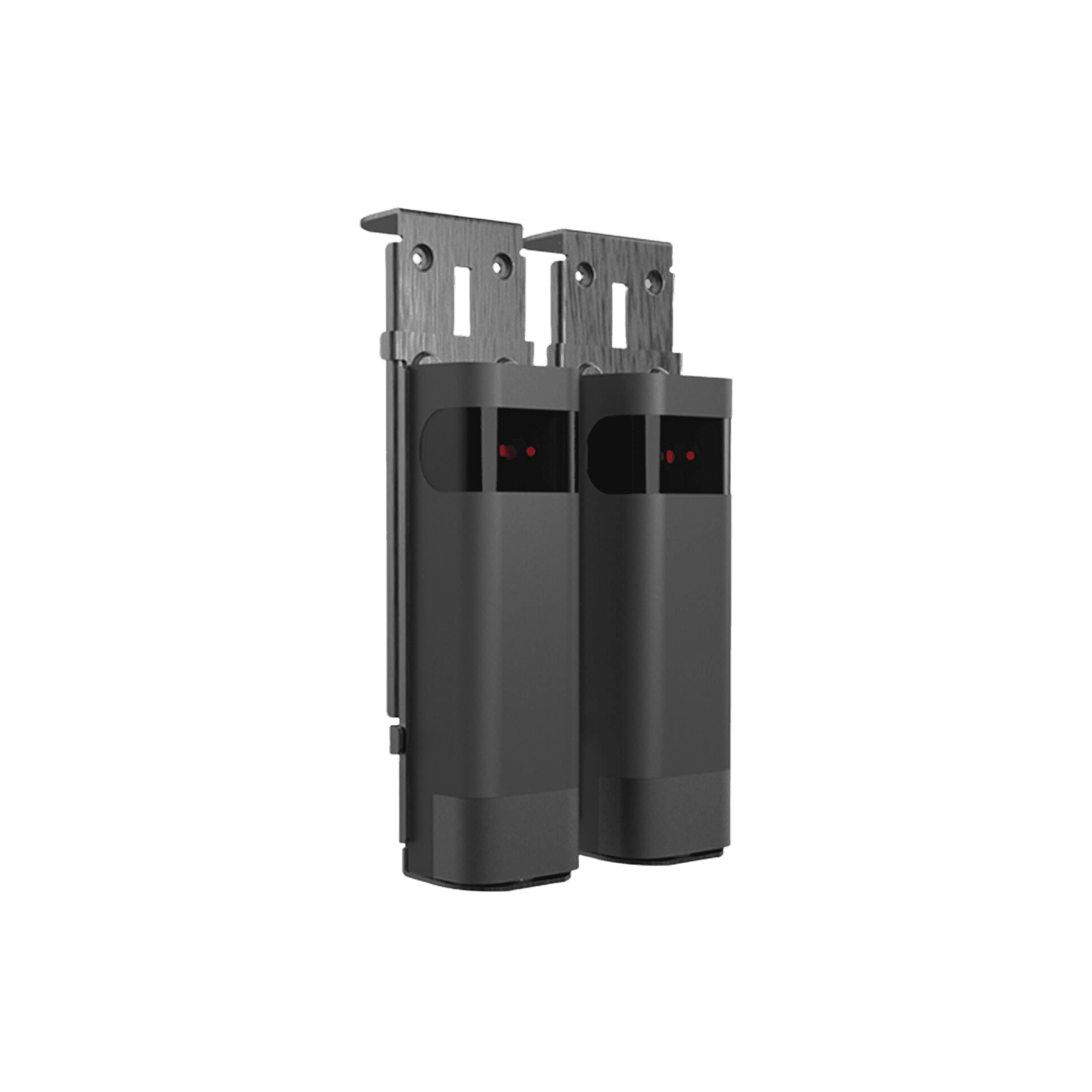

CubeTech's related products for sliding gate automations include digital soft speed control systems,backup batteries,and infrared beam sensors.There are also oil bath worm type reducers,overload detectors,and photo sensors,all designed to ensure smooth,safe operation of sliding gates.
