GENERAL
Power supply | 220V / 50Hz;110V / 60Hz |
Motor power | 380W |
Gate moving speed | 350mm / s |
Maximum weight of gate | 500 / 800 / 1000 / 1500 KG |
Limit switch | Spring limit switch / Magnetic limit switch |
Noise | ≤56dB |
Working duty | S2, 20min |
Working temperature | -20°C ~ +70°C |
Package weight | 10.18Kg |
RADIO SYSTEM
Recording of up remote controls | 25 |
Frequency | 433.92 MHz |
Remote control distance | ≥50m |
Remote control mode | Single button mode / Three button mode |
Related products

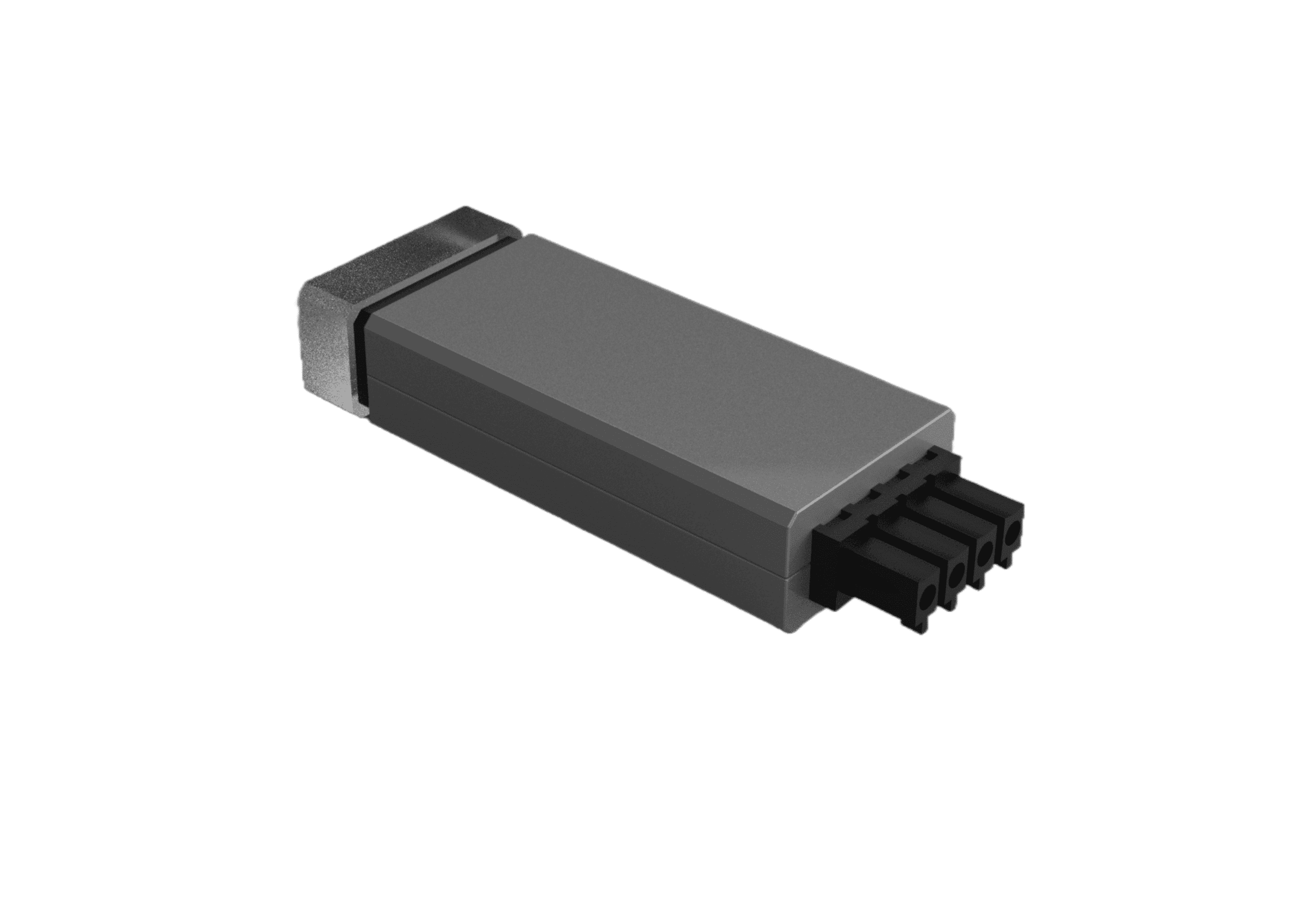

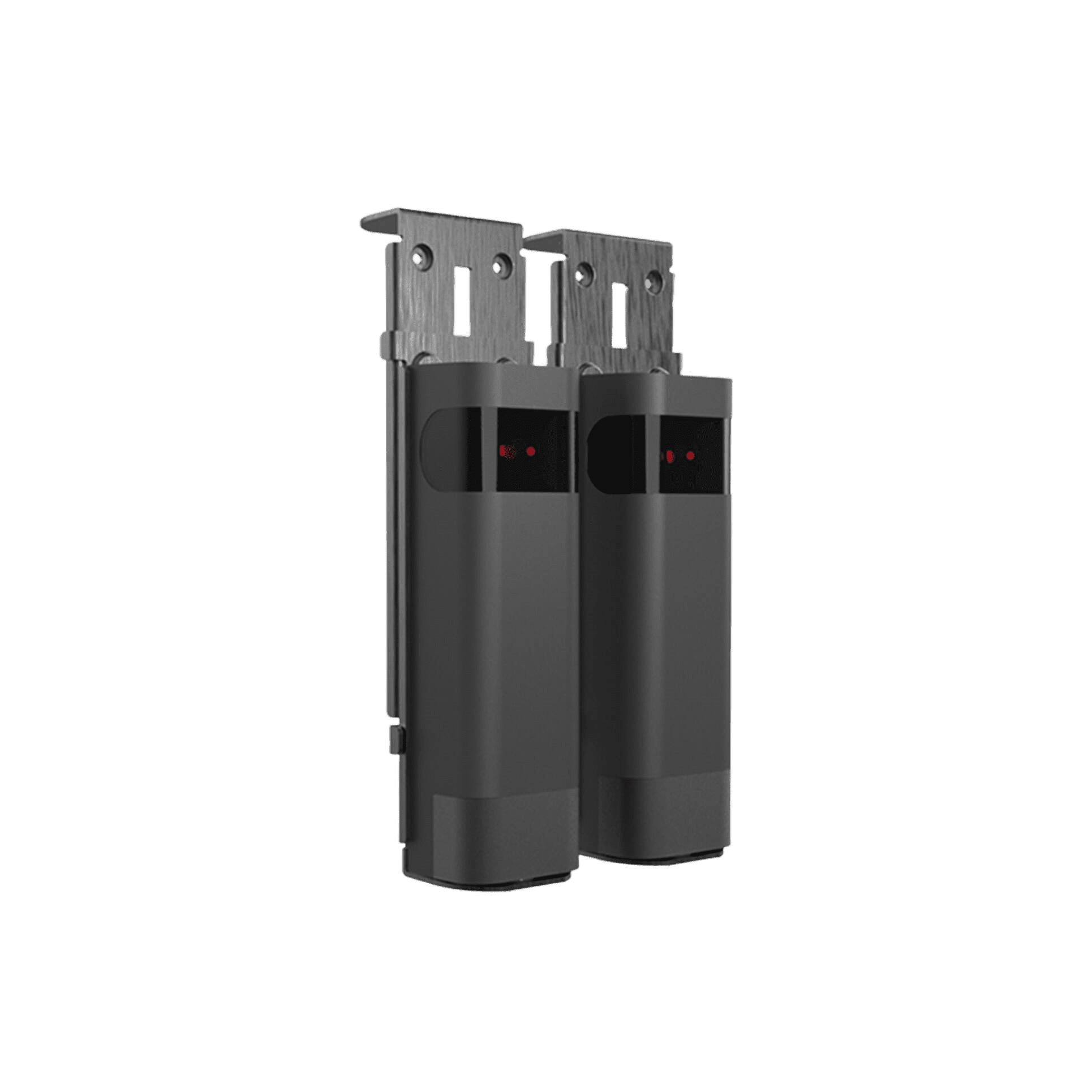

CubeTech's related products for sliding gate automations include digital soft speed control systems,backup batteries,and infrared beam sensors.There are also oil bath worm type reducers,overload detectors,and photo sensors,all designed to ensure smooth,safe operation of sliding gates.
